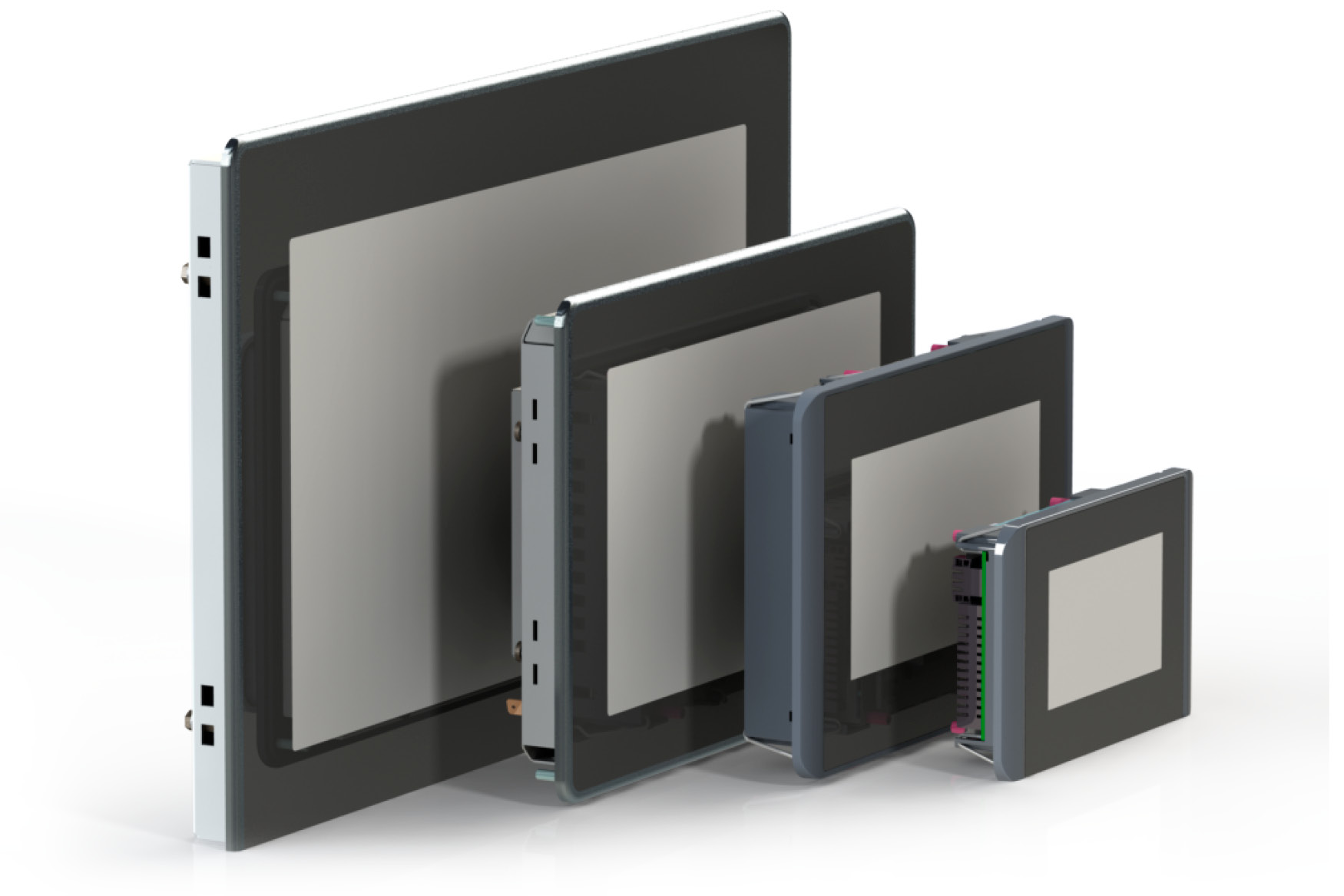

Powerful and Compatible Touch Panels
Smooth operation and a data-secure connection to the connected systems can only be ensured by high-performance hardware.
Ethernet as a communication interface as well as USB host and SD card slot are not common in this class, but allow a variety of supporting functions and are integrated as standard at Berghof. The devices can be easily combined with other control components from Berghof and can also be easily connected to control systems from other manufacturers thanks to unconditional compliance with general regulations.
ET-Pro
A multi-layer front foil structure with a high degree of resistance against many types of chemicals, a particularly warp-resistant construction of the mechanical equipment in a metal housing, a niche-free, clean front with no edges: When developing our control panels, we pulled out all the stops so that you can use these devices effortlessly even under adverse conditions.
Features:
- Available in 4", 7", 10" and 15"
- Permitted for use in residential areas
- 800 MHz ARM® CPU A9
- Up to 4 GB RAM / 512 MB Flash / 64 bit Bus
- Tool-free snap-in installation
- Intuitive, centralized service home page for configuration on the device
- bright displays (>400 Cd/m²)
- Universally usable HTML5 web browser
- Target visualization via the VNC protocol
- Quick and easy firmware updates via USB

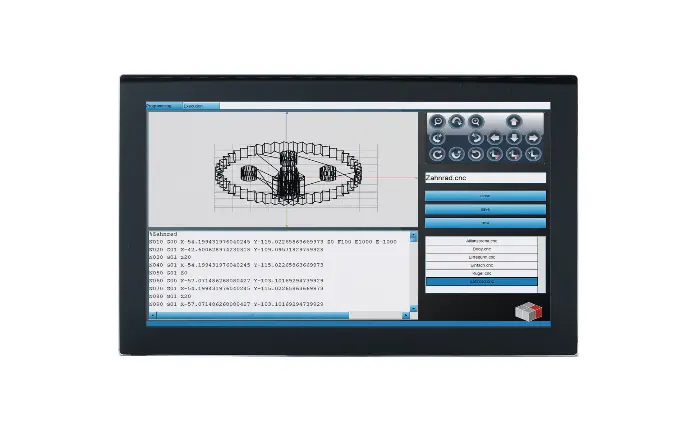

ET-Prime
Capacitive high-end touch panels from Berghof.
With multi-touch and gesture control, this series offers a versatile and future-proof solution for modern operating requirements.
The panels impress with their high-quality design, technical features and robust finsih. The 2 mm thick, chemically hardened glass enables reliable operation - even under demanding conditions, such as wearing gloves or contact with water and dirt.
Features:
- Available in 7", 10” and 15"
- 800MHz ARM CPU with Cortex™-A9 single core
- 512 MB RAM / 2GB Flash
- Permitted for use in residential areas
- 85° viewing angle in all directions
- Widescreen, up to full HD at 1920x1080 pixels
- Universally usable HTML5 web browser
- Target visualization via the VNC protocol
- Quick and easy firmware updates via USB
- Intuitive, centralized service home page for configuration on the device
- With panel mounting and fully compatible even with narrow operating housings as well as support arm and lift systems
