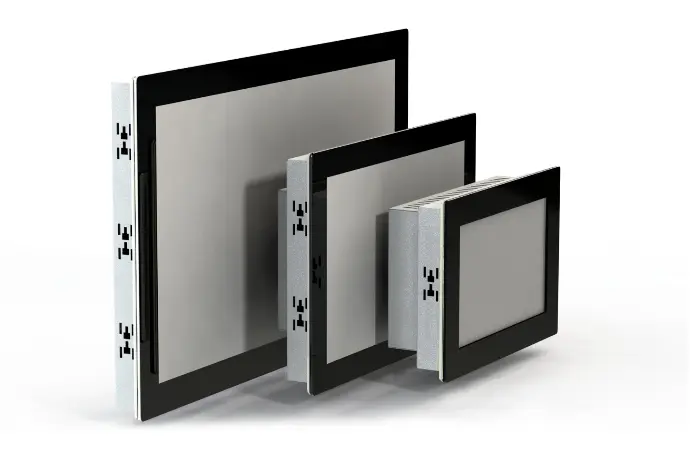

High-Performance Display Controllers



Discover our versatile CODESYS display controls that are perfectly tailored to your applications. Choose from an extensive portfolio of display sizes with capacitive or resistive touch.

We also offer maximum flexibility in terms of performance: our devices are available as single, dual or quad-core variants (DC-Pi Prime). Choose between powerful IMX 6 devices or cutting-edge models based on Raspberry Pi.

The Raspberry Pi-based controllers in particular open up new possibilities for you in industrial automation: thanks to optional AI acceleration, predictive maintenance and condition monitoring, you are optimally equipped for the requirements of tomorrow.

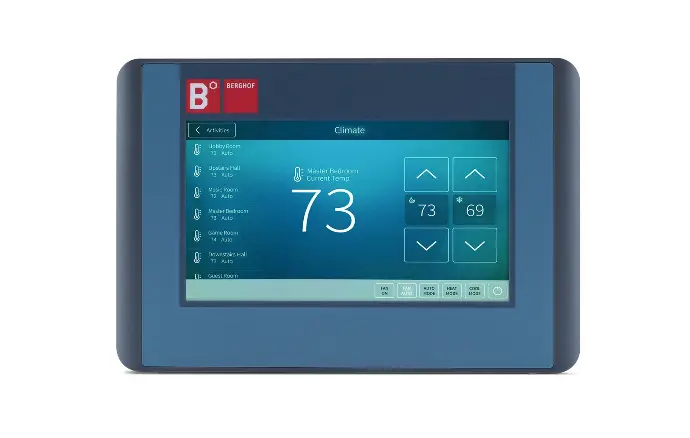

DC-Pro

This thoroughly robust display controller with resistive touch and niche-free clean front can not only be installed without tools, but also offers you important security software features. Remanent hardware memory independent of the real-time clock battery, integrated temperature sensor monitoring, isolated interfaces and much more.

Also available as a dual-core device with up to 1 GB RAM, 2 GB flash, 100 kB retain.


Features:

  • Available in 4", 7", 10" and 15"
  • Application update via USB
  • Permitted for use in residential areas
  • Application protection via tamper-proof hardware identification
  • Optional downgrading of the PLC cycle time down to 500μs
  • Three-wire measurement to compensate for line resistance
  • OpenVPN
  • Universally usable VNC + HTML5 web browser
  • Configurable inputs for counters and encoders
  • Control buttons for resetting / stopping / starting the PLC application
  • Integrated switchable termination resistors for the interfaces
  • Two-stage external HW watchdog
  • PT100/PT1000-compatible analog inputs
  • Separate power supply for the digital outputs in groups
  • Serial 9-bit multi-drop mode
  • Operating hours counter


Manual(5.00 MB, PDF)

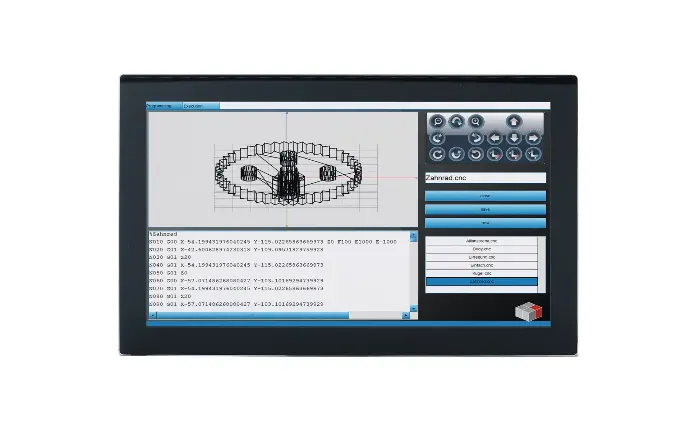

DC-Prime

This frameless display controller combines maximum flexibility with first-class performance.

Thanks to its 85° viewing angle in all directions and brilliant color reproduction, it impresses with razor-sharp image quality. The chemically hardened 2 mm glass ensures exceptional stability, while the multi-touch function and gesture control enable intuitive operation even in water, dirt or when wearing gloves.

The display with Full HD resolution (1920x1080 pixels) can be used in a variety of ways - from panel mounting to a support arm system - and can be perfectly adapted to any application.


Features:

  • Available in 7", 10” and 15"
  • Application update via USB
  • Permitted for use in residential areas
  • Application protection via tamper-proof hardware identification
  • Optional downgrading of the PLC cycle time down to 500μs
  • Three-wire measurement to compensate for line resistance
  • OpenVPN
  • Universally usable VNC + HTML5 web browser
  • Configurable inputs for counters and encoders
  • Control buttons for resetting / stopping / starting the PLC application
  • Integrated switchable termination resistors for the interfaces
  • Two-stage external HW watchdog
  • PT100/PT1000-compatible analog inputs
  • Separate power supply for the digital outputs in groups
  • Serial 9-bit multi-drop mode
  • Operating hours counter

Manual(3.13 MB, PDF)

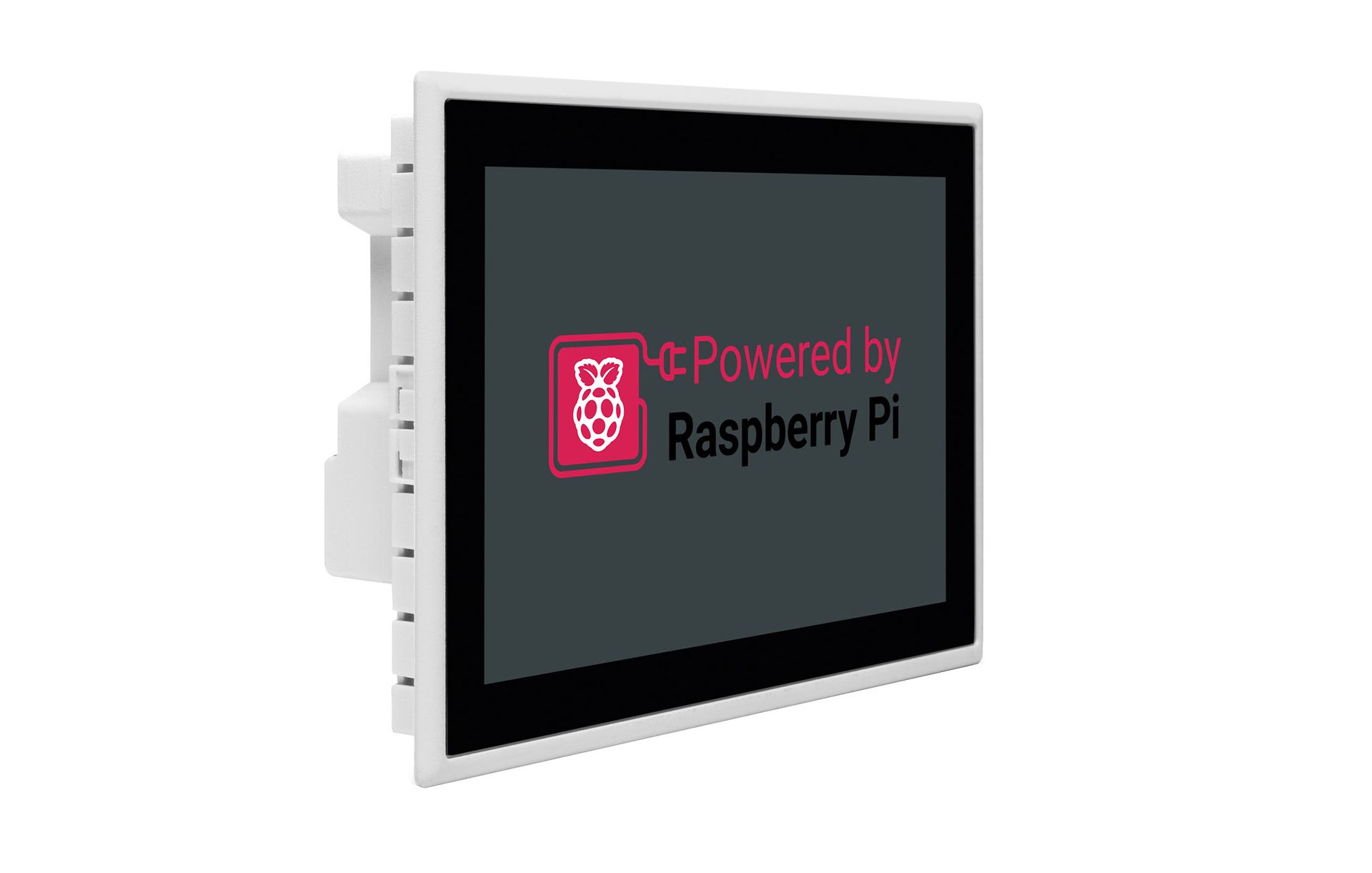

DC-Pi-Prime

This innovative combination of CODESYS controller based on Raspberry Pi with capacitive display and AI acceleration card is the perfect solution for the automation requirements of the future, enabling AI to be integrated into the CODESYS PLC.

This combines the simple world of classic PLC with the advanced methods of the future.


Features:

  • The integrable AI offers new possibilities and methods that can now also be conveniently used in the automation technology of machines and systems. This simplifies processes and minimizes training, familiarization and set-up times.
  • Predictive maintenance and condition monitoring can reduce downtimes and typical problems can be detected at an early stage.
  • The image processing options in combination with simple cameras enable the monitoring and optimization of production processes as well as the early detection of process errors.

Technical data(62 kB, PDF)

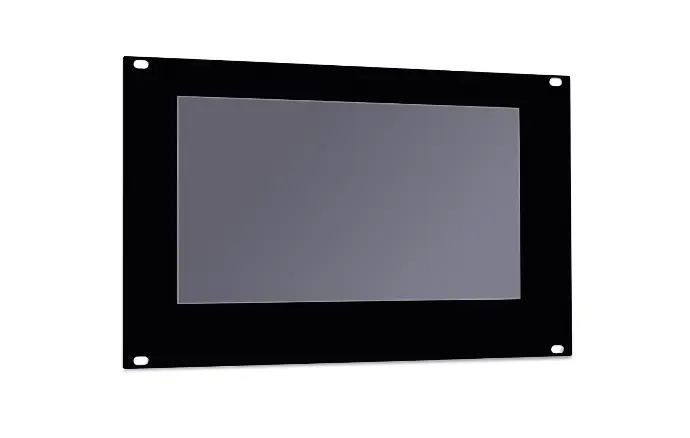

DC-Rack

Thanks to the seamless metal front and housing, you get a robust display controller suitable for mounting in 19” rack systems.

The B-Primis DC-Rack 7 is mainly used in control cabinets or as a server cabinet controller. We use a display with high brightness, perfect contrast and resistive touch.

Available as a single-core and dual-core device with up to 512 MB RAM, 256 MB flash, 100 kB retain and 2x 800 MHz ARM® CPU with Cortex™-A9.


Features:

  • Remanent hardware memory independent of the battery
  • Integrated temperature sensor monitoring, e.g. for the control cabinet
  • Isolated interfaces and much more
  • Application update via USB
  • Residential area approval
  • Application protection via forgery-proof hardware identification
  • Optional downgrading of the PLC cycle time down to 500μs
  • Three-wire measurement to compensate for line resistance
  • OpenVPN
  • VNC + HTML5 web browser for universal use
  • Inputs configurable as counters and encoders
  • Operating button for resetting/stopping/starting the PLC application
  • Integrated switchable terminating resistors for interfaces
  • External HW watchdog, two-stage
  • Analog inputs, PT100/PT1000-capable
  • Separate voltage supply of the digital outputs in groups
  • Serial 9bit multi-drop mode
  • Operating hours counter


 Technical data (60 kB, PDF)

 Manual (5.00 MB, PDF)
