All-In-One CODESYS Controllers

The B-Fortis CC device series offers compact CODESYS high-performance controllers that replace numerous individual components with a functionally integrated device. Thanks to onboard peripherals and versatile functions, you save on investments in additional assemblies.

Compared to modular product solutions, the general workload, for example, in terms of logistics, assembly and testing, is significantly lower. At the same time, having one compact PLC as the central heart and brain of the entire system ensures improved functional reliability due to the faster data communication.

Three designs cover all requirements, supplemented by expansion modules if required. The devices can be easily combined with other control components such as the Berghof MC or ET system. Devices can be changed easily by simply plugging in the SD card - just one example of the well thought-out features.

B-Nimis CC-Lite
B-Nimis CC-Slim

B-Nimis CC-Prime

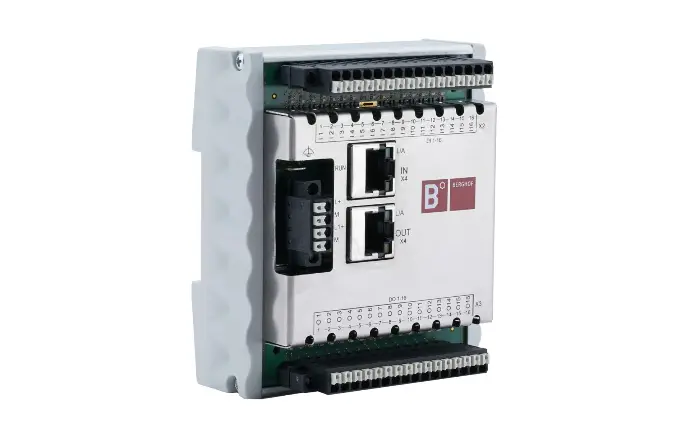

EtherCAT I/O Extensions

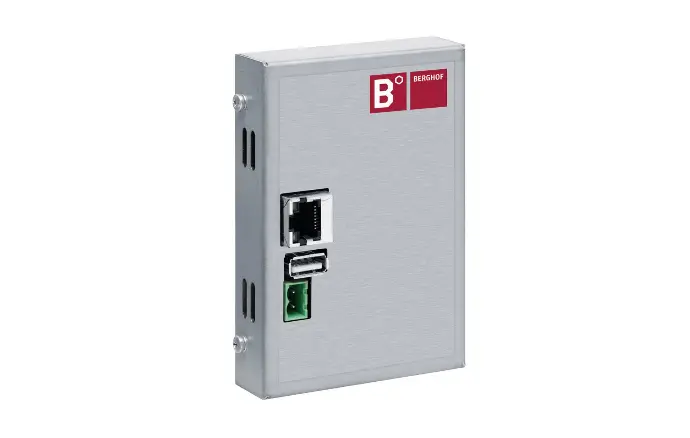

CC-Lite

The B-Fortis CC-Lite controller combines a compact design with an excellent price-performance ratio thanks to deliberately reduced features - without compromising on performance. State-of-the-art control components make it an ideal choice as a central controller for remote units or demanding motion applications.

Features:

Overload, short circuit, reverse polarity and overvoltage protection
Permitted for use in residential areas
Application update via USB
Application protection via tamper-proof hardware identification
Optional shortening of the PLC cycle time down to 500 μs
Variety of fonts
Universally usable VNC + HTML5 web browser
OpenVPN
Tool-free installation
Energy-saving components and software functions

Technical data(48 kB, PDF)

Manual(1.25 MB, PDF)

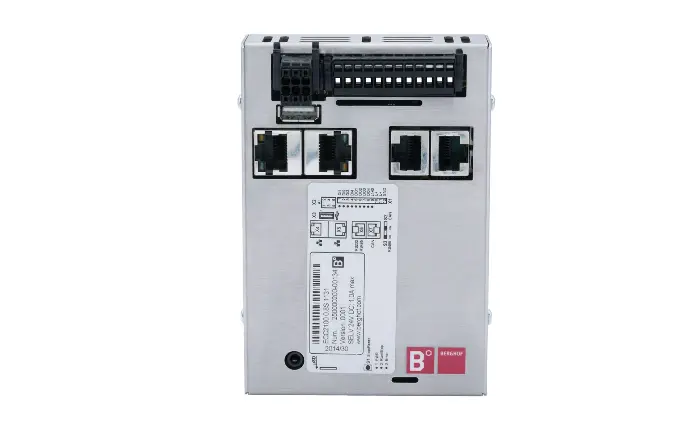

CC-Slim

Just as compact and powerful: At almost the same size, the B-Fortis CC-Slim offers significantly more interfaces and I/Os than the CC-Lite.

In addition to a unique hardware concept with, for example, independent Ethernet interfaces, you can expect a consistently safe application, all thanks to solutions obtained from practical experience.

Persistent hardware storage independent of the battery
Integrated temperature sensor monitoring, e.g., for control cabinets
Isolated interfaces and much more.

Features:

Configurable inputs for counters and encoders
Control buttons for resetting / stopping / starting the PLC application
Integrated switchable termination resistors for the interfaces
Two-stage external HW watchdog
PT100/PT1000-compatible analog inputs
Separate power supply for the digital outputs in groups
Serial 9-bit multi-drop mode
Operating hours counter
Buzzer and optional sound chip for mp3 playback
Analog I/O with up to 24-bit resolution

Technical data(60 kB, PDF)

Manual(2.31 MB, PDF)

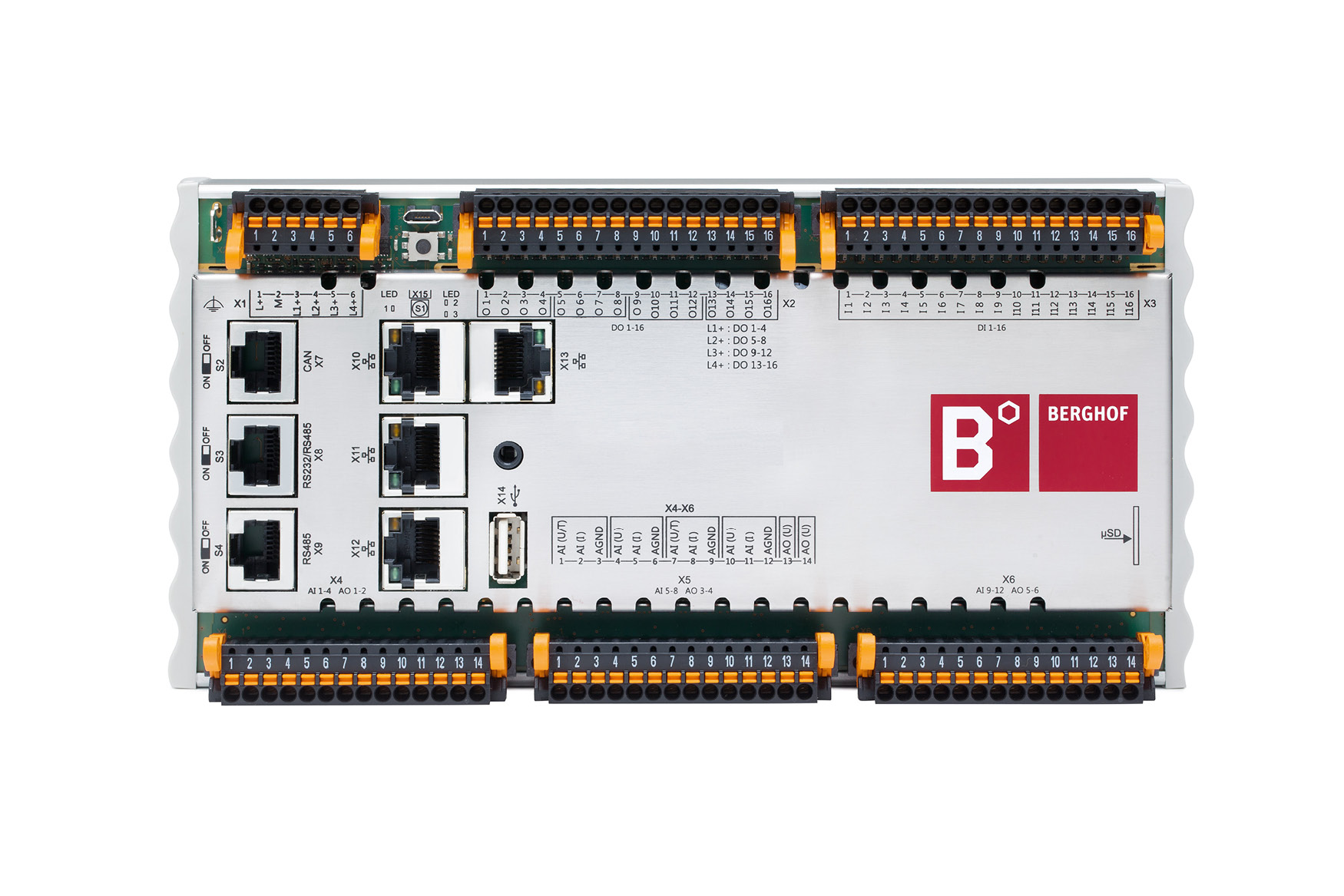

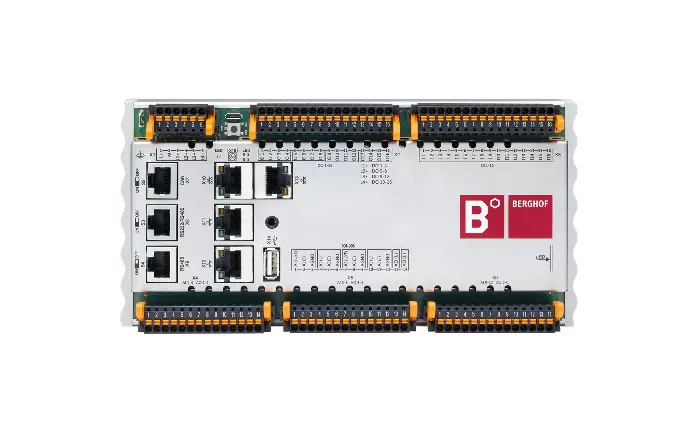

CC-Prime

The B-Fortis CC-Prime is the flagship model in Berghof's all-in-one controller series and combines maximum performance with versatile functions. This compact PLC not only offers impressive performance, but also plenty of space for numerous interfaces.

With standardized components, consistent form factor and well thought-out interface layout, the CC-Prime is particularly easy to configure, install and maintain.
