Industrial Box PC with Raspberry Pi OS
With the B-Nimis BC-Pi product line, Berghof offers a sophisticated industrial PC solution with an open Raspberry Pi OS - in the proven, very compact design of the MC-Pi series.
Thanks to the variety of available software solutions, the high-performance cooling, the optional CODESYS runtime and interfaces and functions such as EtherCAT, USB3, USB2 and RTC, the BC-Pi is suitable for a wide range of applications in the industrial environment.
Benefit from the open system and the synergy with the Raspberry community.

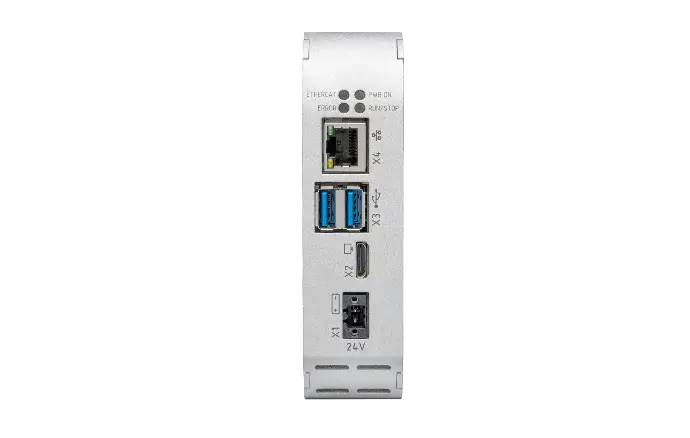

BC-Pi Pro
Depending on requirements, the BC-Pi Pro can be used as an IPC with Raspberry Pi OS or as a PLC with real-time CODESYS.
The use of the latest Raspberry Pi technology (CM4) in combination with first-class Berghof hardware and software engineering enables this industrial PC to deliver top performance in industrial environments. Even with the cost-effective entry-level module, there are no limits to your application with 4 GB RAM / 32 GB Flash.
Features:
- Up to 8GB RAM / 32GB Flash
- Compatible with Berghof’s entire standard portfolio
- Integrated EtherCAT communication system
- Industrial temperature ranges
- Raspberry Pi OS
- CODESYS standard
- WLAN & Bluetooth optional
- Compute Module 4
- Certificates for international use are available
- A software concept with container packages for easy software upgrades
BC-Pi Prime
This more powerful addition to the BC-Pi Pro offers additional interfaces as well as a uSD card slot and 4x USB 3.0, continuing its features. Time-saving updates via USB and uSD card for the firmware or customer applications in the field are therefore no problem. A recess in the housing provides space for an additional heat sink to withstand extreme temperatures.
Features:
- Up to 8GB RAM / 32GB Flash
- 4x host USB 3.0
- 1x uSD (SDXC)
- Compatible with Berghof’s entire standard portfolio
- Integrated EtherCAT communication system
- Industrial temperature ranges
- Raspberry Pi OS
- CODESYS standard
- WLAN & Bluetooth optional
- Compute Module 4
- Certificates for international use are available
- A software concept with container packages for easy software upgrades
BC-Pi Plus
The BC-Pi Plus extends the Prime model with interfaces such as RS232/RS485 and a native CAN interface and is therefore ideally suited for IPC CAN applications. USB 3.0, Gibabit Ethernet, WLAN and Bluetooth (optional) make the Raspberry Pi-based box PC the automation solution for the future.
Features:
- Up to 8 GB RAM / 32 GB Flash
- 2x Host USB 3.0, 1x Host USB 2.0
- 1x CAN bus
- 1x RS232 / RS485
- 1x uSD (SDXC)
- Compatible with Berghof’s entire standard portfolio
- Integrated EtherCAT communication system
- Industrial temperature ranges
- Raspberry Pi OS
- CODESYS standard
- WLAN & Bluetooth optional
- Compute Module 4
- Certificates for international use are available
